Door Check Arm: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

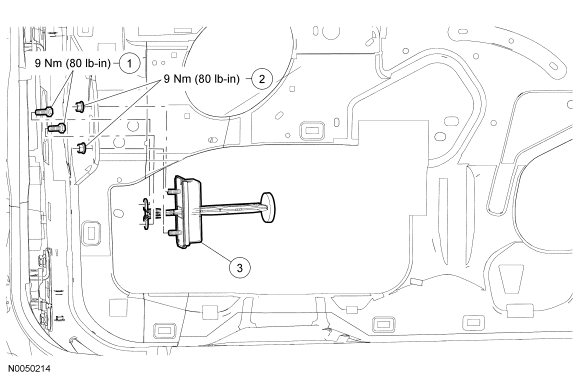

Fig 1: Door Check Arm With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	56912	Door check arm bolts (2 required)
2	W705436	Door check arm nuts (2 required)
3	23500	Door check arm
