Coolant Flow Diagram
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot, white arrows indicate cold.

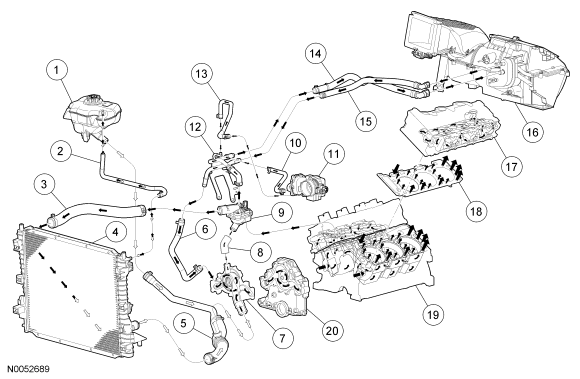

| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8276 | Upper degas bottle hose |
| 3 | 8B274 | Upper radiator hose |
| 4 | 8005 | Radiator |
| 5 | 8B273 | Lower radiator hose |
| 6 | 18C266 | Coolant inlet tube-to-coolant pump hose |
| 7 | 8501 | Coolant pump |
| 8 | 8548 | Coolant pump-to-thermostat housing hose |
| 9 | 8A586 | Thermostat housing |
| 10 | 18465 | Coolant inlet tube-to-Throttle Body (TB) hose |
| 11 | 9F991 | TB |
| 12 | 18696 | Coolant inlet tube |
| 13 | 18465 | Coolant inlet tube-to-TB hose |
| 14 | 18K579 | Heater inlet hose |
| 15 | 18K580 | Heater outlet hose |
| 16 | 19B555 | Heater assembly |
| 17 | 6C064 | Cylinder head |
| 18 | 6083 | Cylinder head gasket |
| 19 | 6015 | Engine block |
| 20 | 6019 | Engine front cover |
NOTE:
Black arrows indicate hot, white arrows indicate cold.

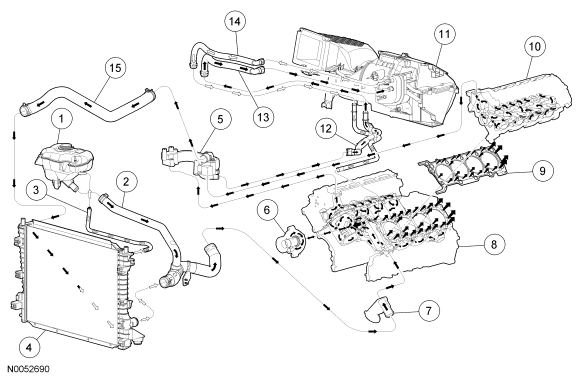

| Item | Part Number | Description |
|---|---|---|
| 1 | 8A080 | Degas bottle |
| 2 | 8B273 | Lower radiator hose |
| 3 | 8276 | Upper degas bottle hose |
| 4 | 8005 | Radiator |
| 5 | 8C369 | Coolant crossover manifold assembly |
| 6 | 8501 | Coolant pump |
| 7 | 6881 | Oil filter adapter |
| 8 | 6015 | Engine block |
| 9 | 6083 | Cylinder head gasket |
| 10 | 6050 | Cylinder head |
| 11 | 19B555 | Heater assembly |
| 12 | 18B402 | Coolant tube heater assembly |
| 13 | 18K580 | Heater inlet hose |
| 14 | 18K579 | Heater outlet hose |
| 15 | 8B274 | Upper radiator hose |
