Air Conditioning (A/C) Compressor - 4.6L, 5.4L: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

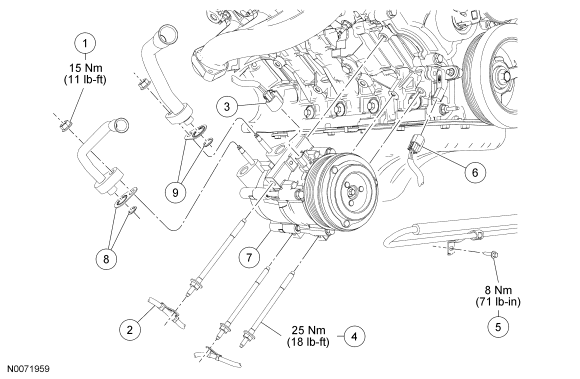

| Item | Part Number | Description |
|---|---|---|
| 1 | N805334 | Compressor fitting nut (2 required) |
| 2 | - | Wire harness retainer (2 required) (part of 12B637) |
| 3 | - | Field coil electrical connector (part of 12B637) |
| 4 | W705811 | A/C compressor stud (3 required) |
| 5 | W505255 | Power steering pressure hose bracket bolt |
| 6 | - | Crankshaft position sensor electrical connector (part of 12B637) |
| 7 | 19703 | A/C compressor |
| 8 | 19B596 | O-ring seal and gasket seal kit |
| 9 | 19B596 | O-ring seal and gasket seal kit |
