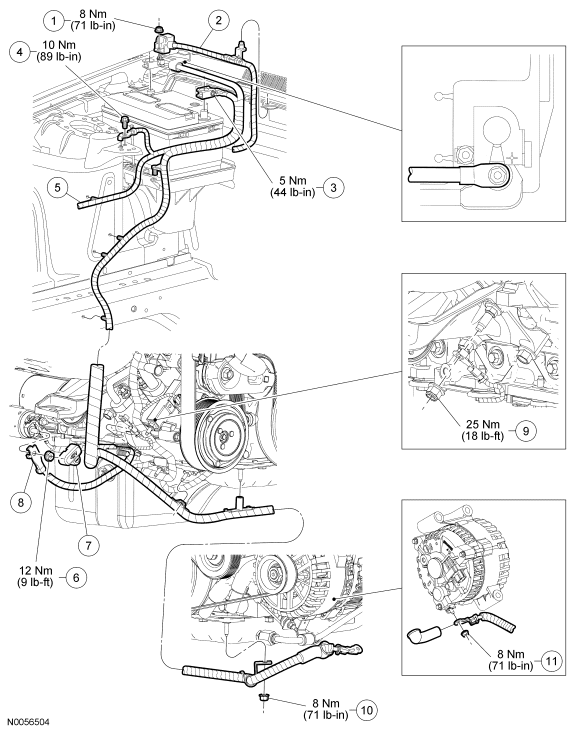

Battery Cables - 5.4L (4V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705790-S901 | Generator harness terminal nut |
| 2 | - | Generator harness terminal (part of 14300) |
| 3 | - | Battery cable terminal bolt (part of 14300) |
| 4 | W712583 | Battery ground cable body bolt |
| 5 | - | Battery harness-to-distribution box |
| 6 | W706414-S413 | Starter solenoid positive cable terminal nut |
| 7 | 11N087 | Starter solenoid terminal cover |
| 8 | - | Starter solenoid positive cable terminal (part of 14300) |
| 9 | W520213-S440 | Battery ground cable engine terminal nut |
| 10 | W705790-S901 | Battery cable harness locator nut |
| 11 | W705790-S901 | Battery cable terminal nut |
