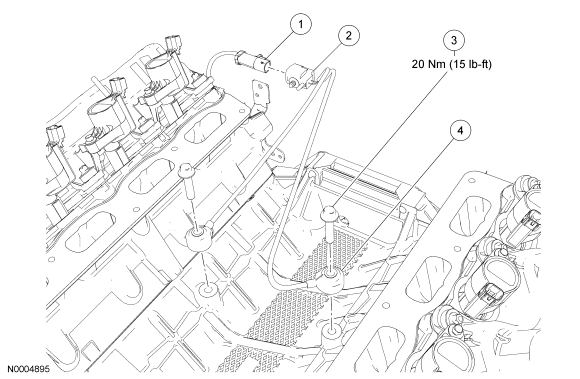

Knock Sensor (KS) - 4.6L (3V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14A464 |
Knock sensor (KS) electrical connector (part of 12B637) |
| 2 |
- |
Pin-type retainer (part of 12A699) |
| 3 |
W500110 |
KS bolt (2 required) |
| 4 |
12A699 |
KS |
