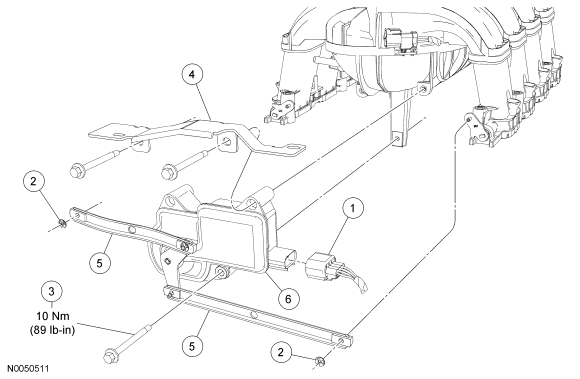

Charge Motion Control Valve (CMCV) - 4.6L (3V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14A464 |
Charge motion control valve (CMCV) electrical connector |
| 2 |
W710420 |
E-clips (2 required) |
| 3 |
W708165 |
CMCV bolt (3 required) |
| 4 |
- |
CMCV bracket |
| 5 |
9B841 |
CMCV linkages |
| 6 |
9G730 |
CMCV |
