Power Steering Pump to Steering Gear Pressure Line - 4.0L, 4.6L: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
NOTE:
4.0L engine shown, 4.6L engine similar.

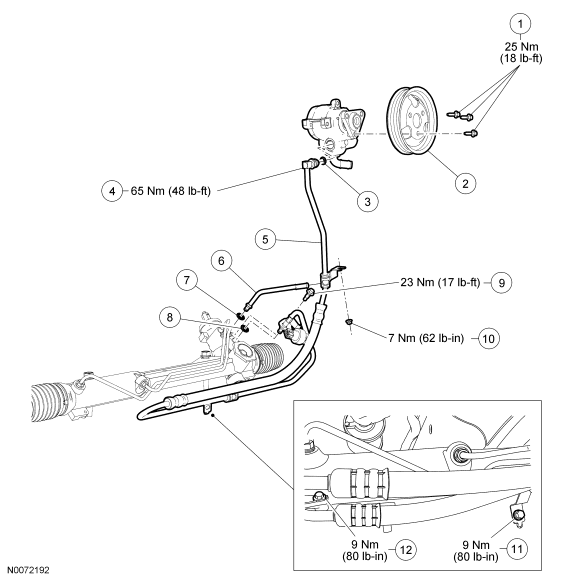

Fig 1: Exploded View Of Power Steering Pump to Steering Gear Pressure Line With Torque Specifications - 4.0L, 4.6L
| Item | Part Number | Description |
|---|---|---|
| 1 | N605784 | Power steering pump pulley bolts |
| 2 | 3A733 | Power steering pump pulley |
| 3 | 388898 | Teflon® seal |
| 4 | - | Pressure line-to-pump fitting (part of 3A719) |
| 5 | 3A719 | Power steering pressure line |
| 6 | 3A713 | Power steering fluid cooler return line |
| 7 | 3F886-BA | O-ring seal |
| 8 | 3F886-AA | O-ring seal |
| 9 | W707622 | Power steering line clamp plate bolt |
| 10 | W520101 | Pressure line bracket-to-A/C compressor stud nut |
| 11 | W505255 | Pressure line bracket-to-crossmember bolt |
| 12 | W505255 | Power steering pressure line bracket-to-steering gear bolt (4.6L) |
