Power Steering Fluid Cooler: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

NOTE: 4.6L shown, 5.4L similar.

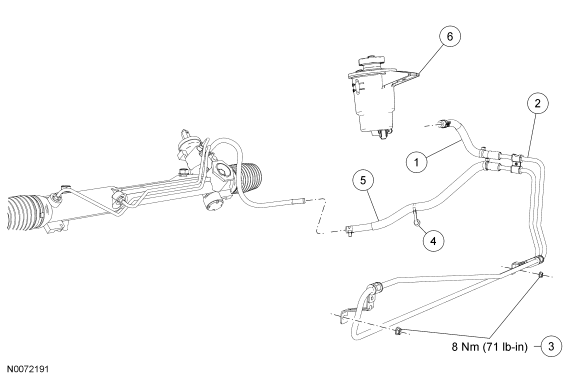

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fluid cooler-to-reservoir hose (part of 3D746)
2	3D746	Power steering fluid cooler line
3	W520101	Power steering fluid cooler nuts (2 required)
4	-	Pin-type retainer (part of 3F780)
5	-	Return line-to-fluid cooler hose (part of 3D746)
6	3A697	Power steering fluid reservoir
