Headlamp Bulb: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

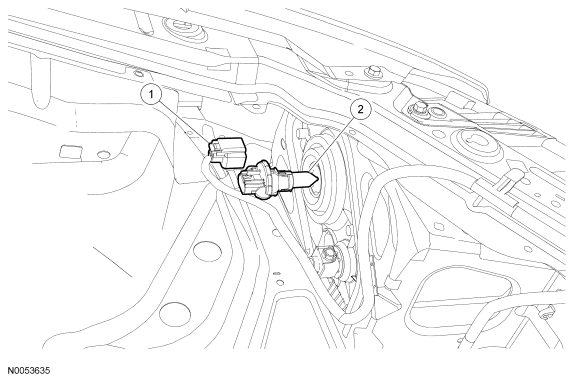

NOTE:
The air cleaner assembly is shown removed for clarity.
NOTE:
Halogen bulb shown, high intensity discharge (HID) bulb is similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp bulb electrical connector (part of 14290) |
| 2 |
13N021 |
Headlamp bulb |
