Fog Lamp Bulb: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 4.0L fog lamp shown, 4.6L fog lamp similar.

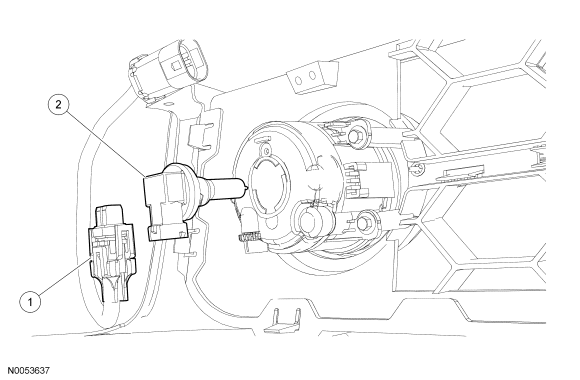

Fig 1: Exploded View Of Fog Lamp Bulb - 4.0L & 4.6L Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fog lamp bulb electrical connector (part of 15A211)
2	13N021	Fog lamp bulb

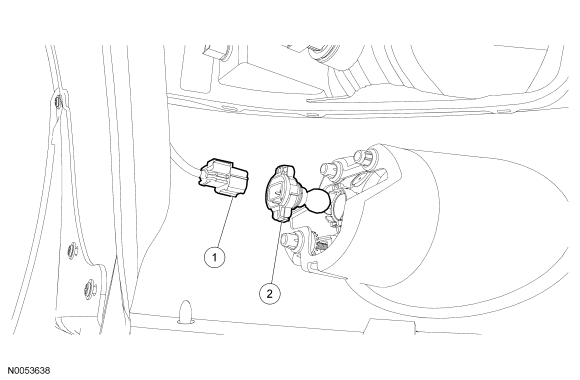

Fig 2: Exploded View Of Fog Lamp Bulb - 5.4L Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fog lamp bulb electrical connector (part of 14290)
2	13N021	Fog lamp bulb
