Driveshaft - 4.6L and 5.4L: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

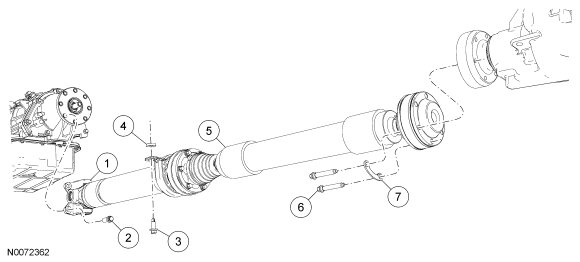

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Driveshaft flange (part of 4K145) |
| 2 | N800594-S100 | Driveshaft flange bolt (4 required) |
| 3 | N506434-S439 | Center bearing bolt (2 required) |
| 4 | W710432-S300 | Spacer (2 required) |
| 5 | 4K145 | Driveshaft assembly |
| 6 | W708259 | Constant velocity (CV) joint bolt (6 required) |
| 7 | 4682 | CV joint washer (3 required) |
