Differential Carrier: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge With Brackets | 100-002 (TOOL-4201-C) | |
| Installer, Differential Shim | 205-220 (T85L-4067-AH) |

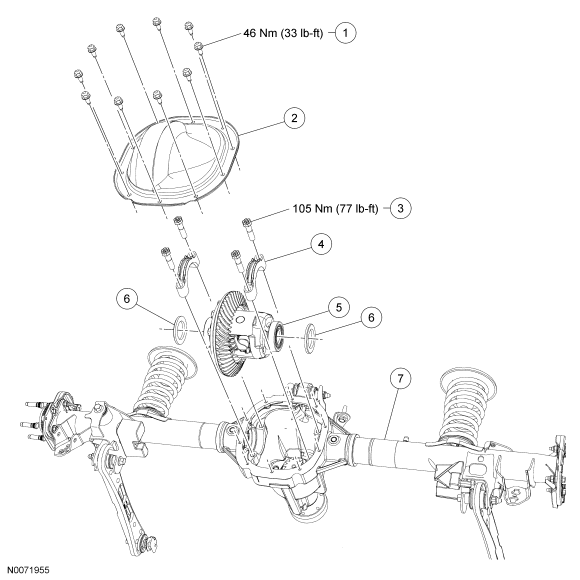

| Item | Part Number | Description |
|---|---|---|
| 1 | 383548 | Differential housing cover bolt (10 required) |
| 2 | 4033 | Differential housing cover |
| 3 | - | Differential bearing cap bolt (4 required) |
| 4 | - | Differential bearing cap (2 required) |
| 5 | 4204 | Differential assembly |
| 6 | 4067 | Differential bearing shims (2 required) |
| 7 | 4010 | Axle housing |
