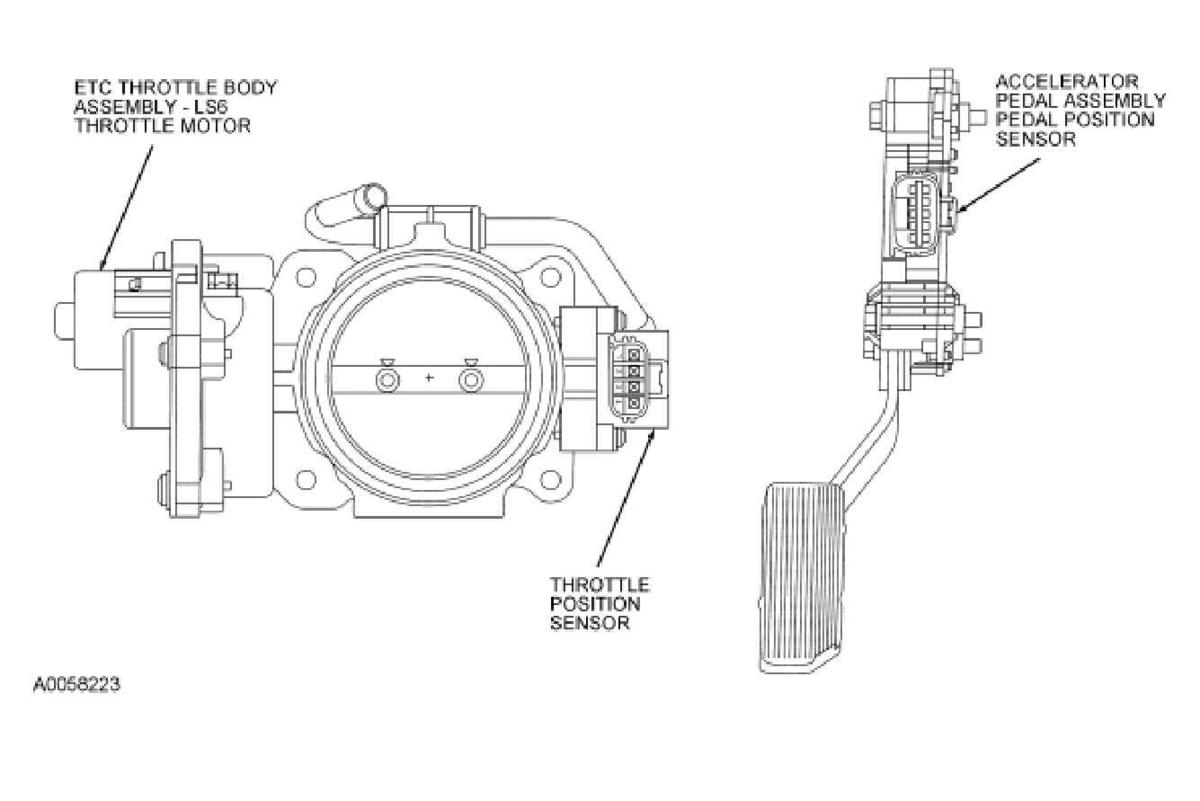

Accelerator Pedal Position (APP) Sensor
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
The ETC strategy uses pedal position sensors as an input to determine the driver demand.
- There are 3 pedal position signals required for system monitoring. APP1 has a negative slope (increasing angle, decreasing voltage) and APP2 and APP3 both have a positive slope (increasing angle, increasing voltage). During normal operation APP1 is used as the indication of pedal position by the strategy.
- There are 2 VREF circuits, 2 signal return circuits, and 3 signal circuits (a total of 7 circuits and pins) between the PCM and the APP sensor assembly.
- 2 reference voltage circuits (5 volts).
- 2 signal return (ground) circuits.
- APP1 voltage with negative voltage slope (5-0 volts).
- APP2 voltage with positive voltage slope (0-5 volts).
- APP3 voltage with positive voltage slope (0-5 volts).
- The pedal position signal is converted to pedal travel degrees (rotary angle) by the PCM. The software then converts these degrees to counts, which is the input to the torque based strategy.
- The 3 pedal position signals make sure the PCM receives a correct input even if 1 signal has a fault. The PCM determines if a signal is incorrect by calculating where it should be, inferred from the other signals. A value will be substituted for an incorrect signal if 2 of the 3 signals are incorrect.
