Instrument Panel Dimmer Switch: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

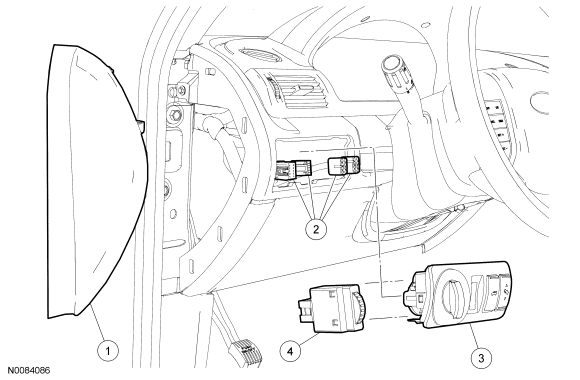

Fig 1: Instrument Panel Dimmer Switch

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5404481	Instrument panel side finish panel
2	-	Electrical connectors (part of 14401)
3	11654	Headlamp switch
4	11691	Instrument panel dimmer switch
