Removal And Installation: c: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
NOTE:

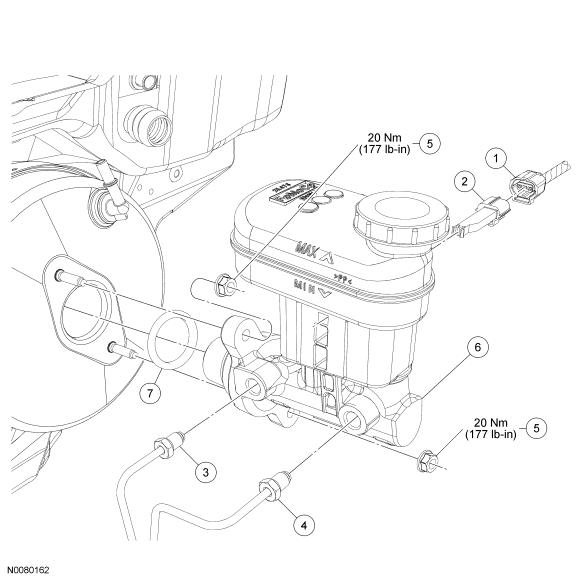

ABS only shown, vehicles with ABS/stability assist and traction control similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level indicator switch electrical connector |
| 2 | 2C251 | Brake fluid level indicator switch |
| 3 | 2C294A | Primary brake tube fitting |
| 4 | 2C294B | Secondary brake tube fitting |
| 5 | W520112 | Brake master cylinder nuts (2 required) |
| 6 | 2140 | Brake master cylinder |
| 7 | 2152 | Brake master cylinder-to-booster seal |
