Stabilizer Bar Link: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.

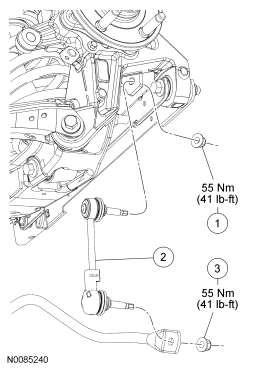

Fig 1: Stabilizer Bar Link With Torque Specifications
GF0045751Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520213 Stabilizer bar link upper nut
2 5K482 Stabilizer bar link
3 W520213 Stabilizer bar link lower nut
