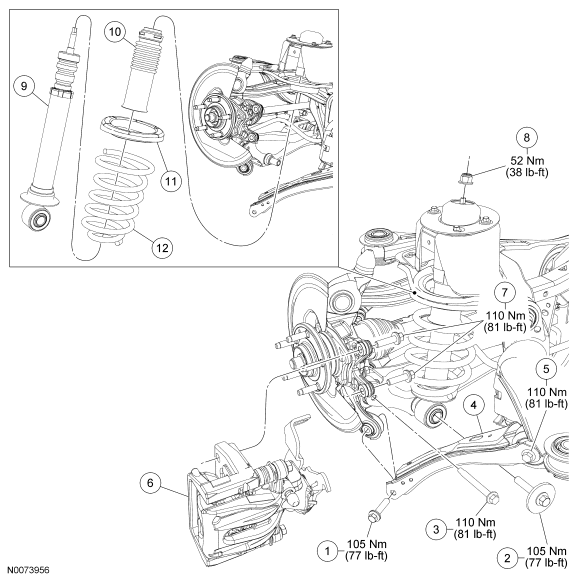

Shock Absorber and Spring Assembly - All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W070874 | Trailing arm-to-wheel knuckle bolt |
| 2 | W710804 | Shock absorber lower bolt |
| 3 | W709125 | Lower arm-to-wheel knuckle bolt |
| 4 | 5500 | Lower arm |
| 5 | W070874 | Trailing arm-to-wheel knuckle bolt |
| 6 | - | Brake caliper and anchor plate assembly |
| 7 | W710681 | Brake caliper and anchor plate bolts (2 required) |
| 8 | W520214 | Upper shock absorber mount nut |
| 9 | 18125 | Shock absorber |
| 10 | 18159 | Dust boot |
| 11 | 5586 | Upper spring isolator |
| 12 | 5560 | Spring |
