Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

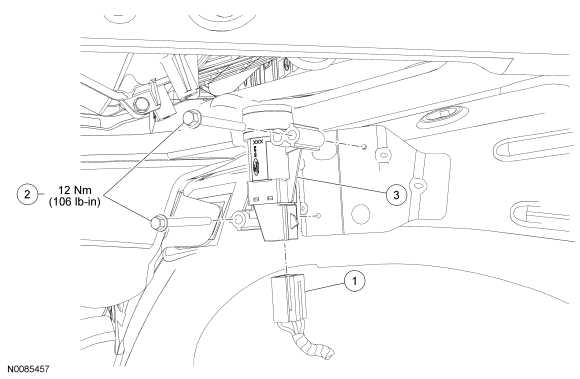

Fig 1: Inertia Fuel Shutoff (IFS) Switch With Torque Specification
GF0045907Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Inertia Fuel Shutoff (IFS) switch electrical connector
2 N611042A IFS switch bolts
3 9341A IFS switch
