Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

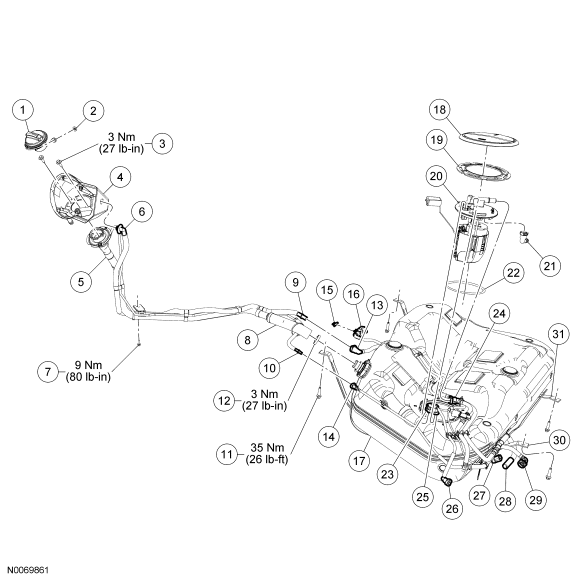

| Item | Part Number | Description |
|---|---|---|
| 1 | 9030 | Fuel tank filler cap |
| 2 | - | Fuel tank filler cap pin-type retainer (part of 9030) |
| 3 | W701107 | Fuel tank filler pipe retaining screw (2 required) |
| 4 | 7440354 | Fuel fill door housing |
| 5 | 9034 | Fuel tank filler pipe |
| 6 | - | Fuel tank filler pipe fresh air hose-to-fuel fill door housing fitting (part of 9034) |
| 7 | W505254 | Fuel tank filler pipe bracket bolt |
| 8 | - | Fuel tank filler pipe hose (part of 9034) |
| 9 | - | Fuel tank filler pipe fresh air hose (part of 9034) |
| 10 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 11 | W506433 | Fuel tank strap bolt (4 required) |
| 12 | W525936 | Fuel tank filler pipe hose clamp |
| 13 | - | Evaporative Emission (EVAP) canister fresh air hose-to-fuel tank filler pipe fresh air hose quick connect coupling (part of 9S321) |
| 14 | - | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C015) |
| 15 | 14A163 | Fuel tank wire harness retainer |
| 16 | 14A464 | Fuel tank wire harness electrical connector |
| 17 | 9P860 | Fuel tank |
| 18 | 9C335 | Fuel Pump (FP) module access cover |
| 19 | 9C385 | FP module lock ring |
| 20 | 9H307 | FP module |
| 21 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 22 | 9276 | FP module O-ring seal |
| 23 | 14A464 | FP module electrical connector |
| 24 | - | Fuel vapor tube assembly-to-FP module quick connect coupling (part of 9C015) |
| 25 | - | Fuel tank jumper tube-to-FP module quick connect coupling (part of 14407) |
| 26 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 14407) |
| 27 | 14A464 | EVAP canister vent solenoid electrical connector |
| 28 | - | Fresh air hose-to-dust separator fitting (part of 9S321) |
| 29 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C015) |
| 30 | 9055A | LH fuel tank strap |
| 31 | 9055B | RH fuel tank strap |

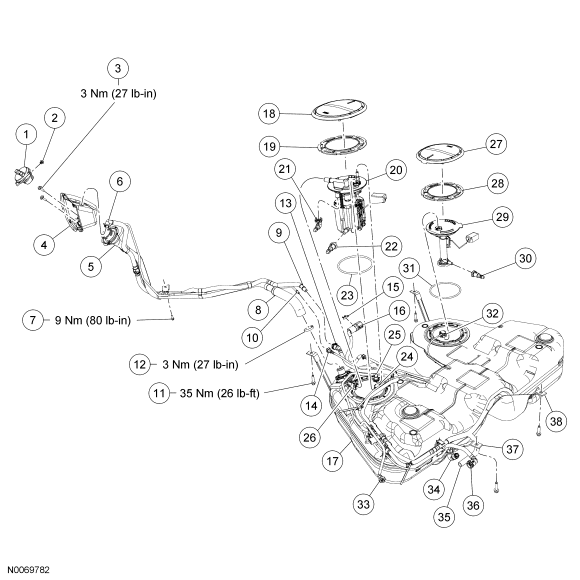

| Item | Part Number | Description |
|---|---|---|
| 1 | 9030 | Fuel tank filler cap |
| 2 | - | Fuel tank filler cap pin-type retainer (part of 9030) |
| 3 | W701107 | Fuel tank filler pipe retaining screw (2 required) |
| 4 | 7440354 | Fuel fill door housing |
| 5 | 9034 | Fuel tank filler pipe |
| 6 | - | Fuel tank filler pipe fresh air hose-to-fuel fill door housing fitting (part of 9034) |
| 7 | W505254 | Fuel tank filler pipe bracket bolt |
| 8 | - | Fuel tank filler pipe hose (part of 9034) |
| 9 | - | Fuel tank filler pipe fresh air hose (part of 9034) |
| 10 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 11 | W506433 | Fuel tank strap bolt (4 required) |
| 12 | W525936 | Fuel tank filler pipe hose clamp |
| 13 | - | Evaporative Emission (EVAP) canister fresh air hose-to-fuel tank filler pipe fresh air tube quick connect coupling (part of 9S321) |
| 14 | - | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C015) |
| 15 | 14A163 | Fuel tank wire harness retainer |
| 16 | 14A464 | Fuel tank wire harness electrical connector |
| 17 | 9P860 | Fuel tank |
| 18 | 9C335 | Fuel Pump (FP) module access cover |
| 19 | W520101 | FP module shield nut (3 required) |
| 20 | 9A032 | FP module shield |
| 21 | 9C385 | FP module lock ring |
| 22 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 23 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 24 | 9H307 | FP module |
| 25 | 9276 | FP module O-ring seal |
| 26 | 14A464 | FP module electrical connector |
| 27 | - | Fuel tank jumper tube-to-FP module quick connect coupling (part of 14407) |
| 28 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 14407) |
| 29 | - | Fuel vapor tube assembly-to-FP module quick connect coupling (part of 9C015) |
| 30 | - | Internal fuel tube-to-fuel level sensor quick connect coupling (part of 9P860) |
| 31 | 9C335 | Fuel level sensor access cover |
| 32 | 9C385 | Fuel level sensor lock ring |
| 33 | 9275A | Fuel level sensor |
| 34 | 9276A | Fuel level sensor O-ring seal |
| 35 | 14A464 | Fuel level sensor electrical connector |
| 36 | 14A464 | EVAP canister vent solenoid electrical connector |
| 37 | - | Fresh air hose-to-dust separator fitting (part of 9S321) |
| 38 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C015) |
| 39 | 9055 | RH fuel tank strap |
| 40 | 9055 | LH fuel tank strap |

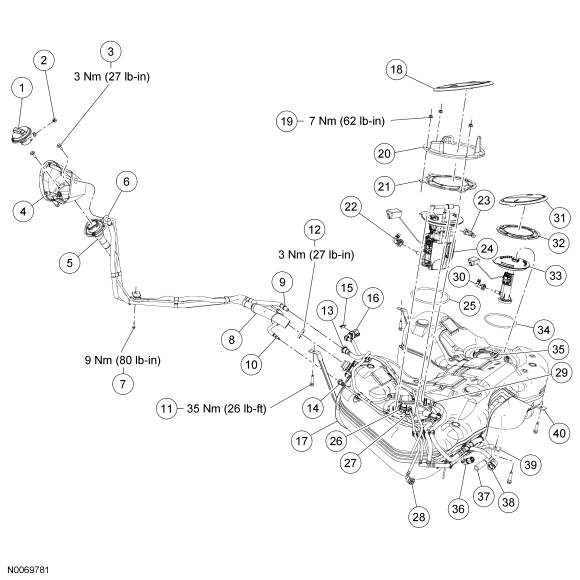

| Item | Part Number | Description |
|---|---|---|
| 1 | 9030 | Fuel tank filler cap |
| 2 | - | Fuel tank filler cap pin-type retainer (part of 9030) |
| 3 | W701107 | Fuel tank filler pipe retaining screw (2 required) |
| 4 | 7440354 | Fuel fill door housing |
| 5 | 9034 | Fuel tank filler pipe |
| 6 | - | Fuel tank filler pipe fresh air hose-to-fuel fill door housing fitting (part of 9034) |
| 7 | W505254 | Fuel tank filler pipe bracket bolt |
| 8 | - | Fuel tank filler pipe hose (part of 9034) |
| 9 | - | Fuel tank filler pipe fresh air hose (part of 9034) |
| 10 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 11 | W506433 | Fuel tank strap bolt (4 required) |
| 12 | W525936 | Fuel tank filler pipe hose clamp |
| 13 | - | Evaporative Emission (EVAP) canister fresh air hose-to-fuel tank filler pipe fresh air tube quick connect coupling (part of 9S321) |
| 14 | - | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C015) |
| 15 | 14A163 | Fuel tank wire harness retainer |
| 16 | 14A464 | Fuel tank wire harness electrical connector |
| 17 | 9P860 | Fuel tank |
| 18 | 9C335 | Fuel Pump (FP) module access cover |
| 19 | 9C385 | FP module lock ring |
| 20 | 9H307 | FP module |
| 21 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 22 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 23 | 9276 | FP module O-ring seal |
| 24 | 14A464 | FP module electrical connector |
| 25 | - | Fuel tank jumper tube-to-FP module quick connect coupling (part of 14407) |
| 26 | - | Fuel vapor tube assembly-to-FP module quick connect coupling (part of 9C015) |
| 27 | 9C335 | Fuel level sensor access cover |
| 28 | 9C385 | Fuel level sensor lock ring |
| 29 | 9275A | Fuel level sensor |
| 30 | - | Internal fuel tube-to-fuel level sensor quick connect coupling (part of 9P860) |
| 31 | 9276A | Fuel level sensor O-ring seal |
| 32 | 14A464 | Fuel level sensor electrical connector |
| 33 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 14407) |
| 34 | 14A464 | EVAP canister vent solenoid electrical connector |
| 35 | - | Fresh air hose-to-dust separator fitting (part of 9S321) |
| 36 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C015) |
| 37 | 9055 | RH fuel tank strap |
| 38 | 9055A | LH fuel tank strap |

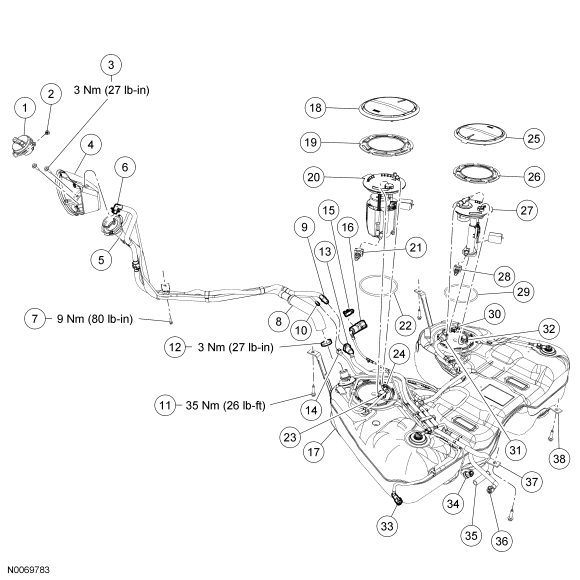

| Item | Part Number | Description |
|---|---|---|
| 1 | 9030 | Fuel tank filler cap |
| 2 | - | Fuel tank filler cap pin-type retainer (part of 9030) |
| 3 | W701107 | Fuel tank filler pipe retaining screw (2 required) |
| 4 | 7440354 | Fuel fill door housing |
| 5 | 9034 | Fuel tank filler pipe |
| 6 | - | Fuel tank filler pipe fresh air hose-to-fuel fill door housing fitting (part of 9034) |
| 7 | W505254 | Fuel tank filler pipe bracket bolt |
| 8 | - | Fuel tank filler pipe hose (part of 9034) |
| 9 | - | Fuel tank filler pipe fresh air hose (part of 9034) |
| 10 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 11 | W506433 | Fuel tank strap bolt (4 required) |
| 12 | W525936 | Fuel tank filler pipe hose clamp |
| 13 | - | Evaporative Emission (EVAP) canister fresh air hose-to-fuel tank filler pipe fresh air tube quick connect coupling (part of 9S321) |
| 14 | - | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C047) |
| 15 | 14A163 | Fuel tank wire harness retainer |
| 16 | 14A464 | Fuel tank wire harness electrical connector |
| 17 | 9P860 | Fuel tank |
| 18 | 9C335 | Fuel Pump (FP) module access cover |
| 19 | 9C385 | FP module lock ring |
| 20 | 9H307 | FP module |
| 21 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9P860) |
| 22 | 9276 | FP module O-ring seal |
| 23 | 14A464 | FP module electrical connector |
| 24 | - | Fuel tank jumper tube-to-FP module quick connect coupling (part of 14407) |
| 25 | 9C335 | Fuel level sensor access cover |
| 26 | 9C385 | Fuel level sensor lock ring |
| 27 | 9275A | Fuel level sensor |
| 28 | - | Internal fuel tube-to-fuel level sensor quick connect coupling (part of 9P860) |
| 29 | 9276A | Fuel level sensor O-ring seal |
| 30 | - | Fuel vapor tube-to-fuel level sensor quick connect coupling (part of 9P860) |
| 31 | - | Fuel vapor tube assembly-to-fuel level sensor quick connect coupling (part of 9C047) |
| 32 | 14A464 | Fuel level sensor electrical connector |
| 33 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 14407) |
| 34 | 14A464 | EVAP canister vent solenoid electrical connector |
| 35 | - | Fresh air hose-to-dust separator fitting (part of 9S321) |
| 36 | - | Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C047) |
| 37 | 9055 | RH fuel tank strap |
| 38 | 9055 | LH fuel tank strap |

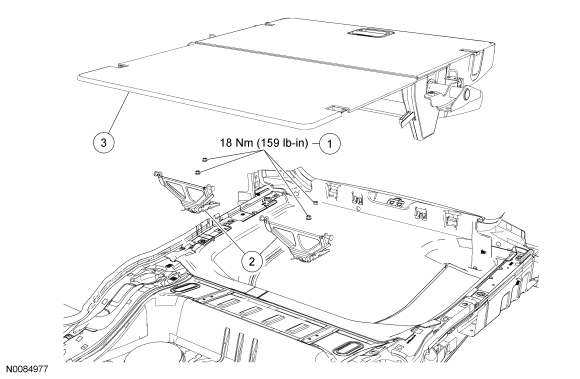

| Item | Part Number | Description |
|---|---|---|
| 1 | N804796 | Load floor support-to-floor pan nuts (4 required) |
| 2 | - | Load floor support (2 required) |
| 3 | - | Load floor panel |
| Item | Part Number | Description |
|---|---|---|
| 1 | W706805-S | Fender splash shield screw (3 required) |
| 2 | W701566 | Fender splash shield rivet (2 required) |
| 3 | - | RH rear fender splash shield |
- For additional information, refer to the procedures in this article.
