Fuel Level Sender: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

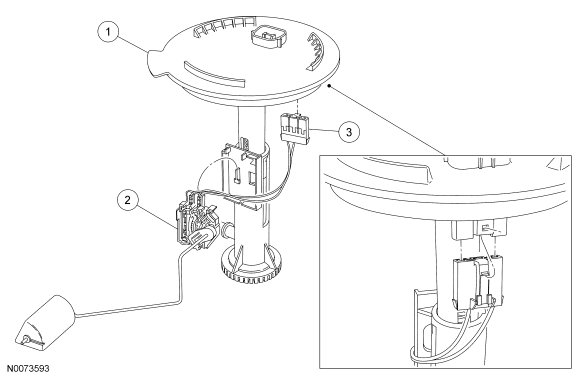

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9H307 |
Fuel Pump (FP) module |
| 2 |
9A299 |
Fuel level sender |
| 3 |
- |
Fuel level sender electrical connector (part of 9A299) |

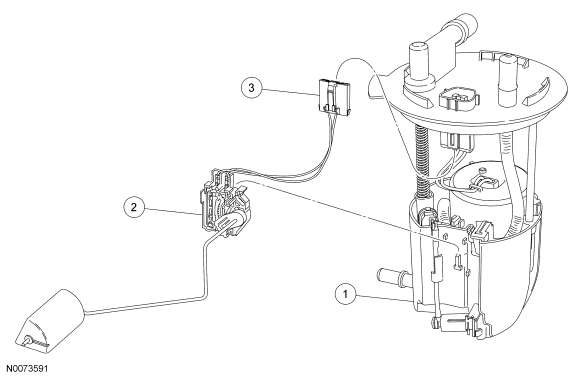

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9275A |
Fuel level sensor assembly |
| 2 |
9A299 |
Fuel level sender |
| 3 |
- |
Fuel level sender electrical connector (part of 9A299) |
