Parking Brake Control: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

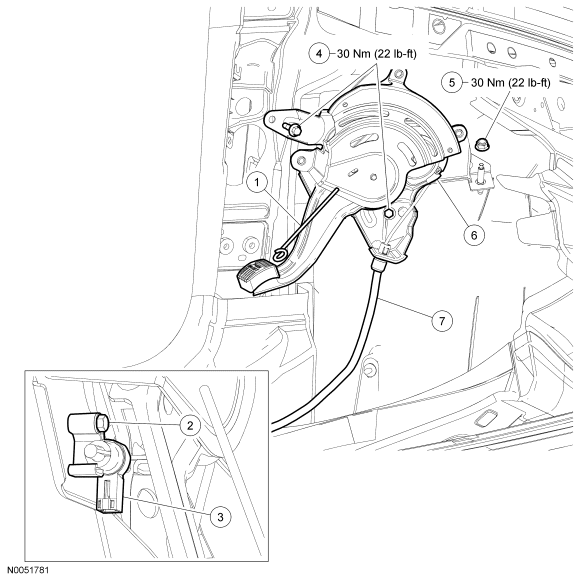

| Item |
Part Number |
Description |
| 1 |
- |
Pin |
| 2 |
- |
Parking brake switch screw (part of 15852) |
| 3 |
15852 |
Parking brake switch |
| 4 |
W506423 |
Parking brake control bolts (2 required) |
| 5 |
W520112 |
Parking brake control nut |
| 6 |
2780 |
Parking brake control |
| 7 |
2853 |
Parking brake cable |
