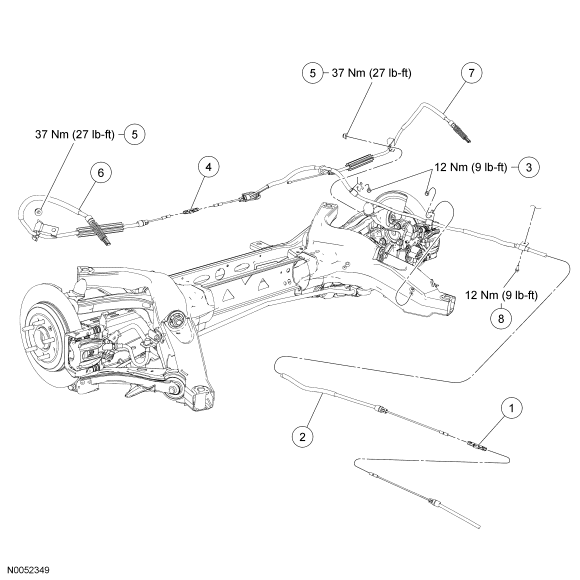

Parking Brake - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cable-to-cable union |
| 2 | 2A793 | Intermediate parking brake cable |
| 3 | W505255 | Parking brake cable bracket bolt (2 required) |
| 4 | - | Intermediate parking brake cable to RH cable-to-cable union |
| 5 | W520213 | Upper control arm parking brake cable bracket nut (2 required) |
| 6 | 2A635 | Parking brake cable (RH) |
| 7 | 2A809 | Parking brake cable (LH) |
| 8 | W505253 | Parking brake cable bracket bolt |
- For additional information, refer to the procedures in this article.
