Thermostatic Expansion Valve Manifold and Tube Assembly: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

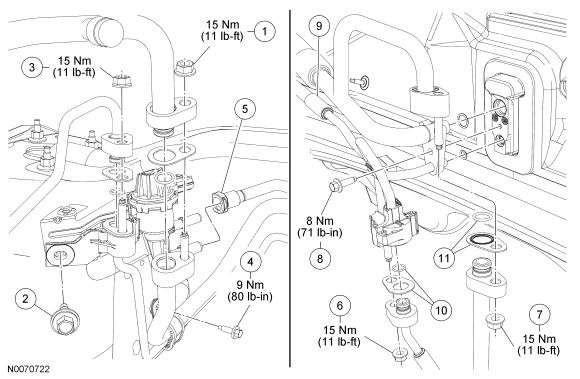

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Evaporator outlet line fitting nut |
| 2 | W708877 | Evaporator inlet line fitting bracket bolt |
| 3 | W520413 | Evaporator inlet line fitting nut |
| 4 | - | Thermostatic expansion valve (TXV) manifold and tube bracket bolt (part of 19835) |
| 5 | 9J279 | Evaporative emission (EVAP) canister purge valve lower fitting |
| 6 | W520413 | Auxiliary evaporator inlet line fitting nut |
| 7 | W520413 | Auxiliary evaporator outlet line fitting nut |
| 8 | N808664 | TXV fitting bolt |
| 9 | 19835 | TXV manifold and tube assembly |
| 10 | 19B596 | O-ring seal and gasket seal kit (2 required if equipped with auxiliary climate control) |
| 11 | 19B596 | O-ring seal and gasket seal kit (2 required if equipped with auxiliary climate control) |
