Clutch and Clutch Field Coil: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Tool, Compressor Clutch | 412-134 | |
| Remover, Compressor Pulley | 412-001 (T71P-19703-B) |

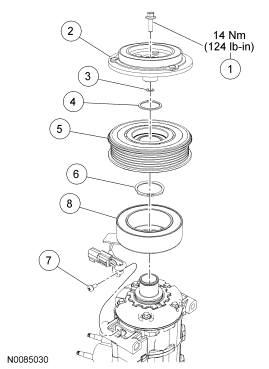

| Item | Part Number | Description |
|---|---|---|
| 1 | W711877 | A/C clutch disc and hub bolt |
| 2 | 19D786 | A/C clutch disc and hub |
| 3 | 19N689 | A/C clutch hub disc and hub spacer |
| 4 | N805338 | A/C compressor pulley snap ring |
| 5 | 19D784 | A/C compressor pulley |
| 6 | W711883 | A/C clutch field coil snap ring |
| 7 | W710797 | A/C clutch field coil electrical connector bracket screw |
| 8 | 19D798 | A/C clutch field coil |
