Antenna Cable - Satellite Radio: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

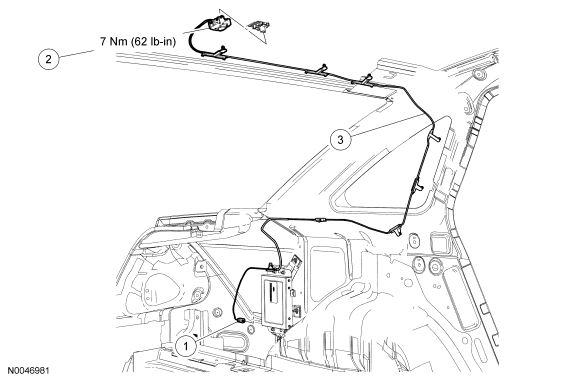

NOTE:
Headliner shown removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Satellite radio antenna cable-to-Satellite Digital Audio Receiver System (SDARS) module electrical connector (part of 18812) |
| 2 | - | Satellite radio antenna cable bolt (part of 18812) |
| 3 | 18812 | Satellite radio antenna cable |

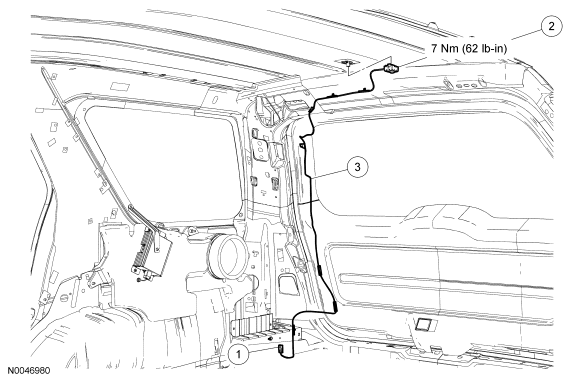

NOTE:
Headliner and rear seat shown removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Satellite radio antenna cable-to-Satellite Digital Audio Receiver System (SDARS) module electrical connector (part of 18812) |
| 2 | - | Satellite radio antenna cable bolt (part of 18812) |
| 3 | 18812 | Satellite radio antenna cable |
