Seat Backrest - Second Row, 60 Percent, Taurus X: Installation

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Position the backrest frame to the cushion frame.

NOTE: When installing the backrest, the retaining bolts must be tightened in the sequence shown.

Install the backrest frame bolts in the sequence shown.
1. Install the 2 LH recliner-to-backrest frame bolts.
  - Tighten to 50 Nm (37 lb-ft).
2. Install the pivot bolt.
  - Tighten to 23 Nm (17 lb-ft).
3. Install the 2 RH recliner-to-backrest frame bolts.
  - Tighten to 50 Nm (37 lb-ft).

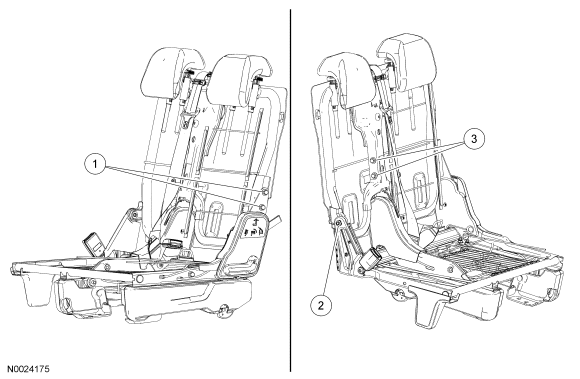

Fig 1: Recliner-To-Backrest Frame Bolts & Pivot Bolt

Courtesy of FORD MOTOR CO.

Position and install the outboard pivot cover.
Reposition the backrest trim cover and attach the 4 backrest trim cover inside J-clips to the hard back panel.
Attach the 2 backrest trim cover lower J-clips.
Position the safety belt buckle and the safety belt anchor assembly to the RH recliner and install the bolt.
- Tighten to 48 Nm (35 lb-ft).
Reposition the cushion foam pad and cushion trim cover to the cushion frame.
Insert the cushion trim cover LH retainer back between the riser and the cushion frame.

Fig 2: Locating Cushion Trim Cover Outboard Retainer

Courtesy of FORD MOTOR CO.

From under the seat, attach the cushion trim cover J-clip at the RH side of the cushion frame.
From under the seat and at the back, between the cushion foam pad and frame, attach the cushion trim cover J-clip to the seat cushion frame.
From under the seat, attach 3 sets of cushion trim cover J-clips.
Install the 60 percent seat into the vehicle. For additional information, refer to Seat - Rear, Second Row, Taurus X .
