Sunshade - Rear: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

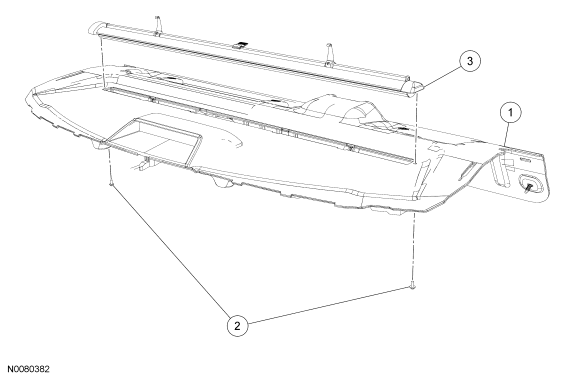

Fig 1: Sunshade - Rear
GF0045362Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W504242 Parcel shelf
2 04101 Rear sunshade screws (2 required)
3 04100 Rear sunshade
