Headliner - Taurus X: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

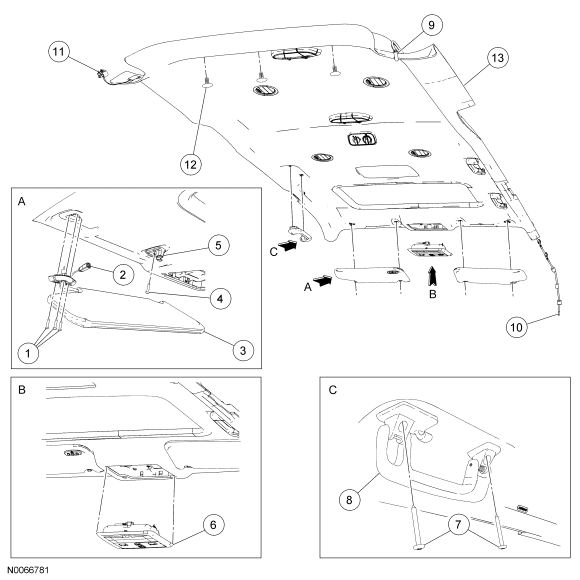

Vehicle shown with DVD system and roof opening panel options, all other vehicles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W504243 | Sun visor retaining screws (3 required) |
| 2 | 04101 | Sun visor wire harness electrical connector |
| 3 | 04104 RH/ 04105 LH | Sun visor |
| 4 | W301894 | Sun visor clip screw |
| 5 | 04132 RH/ 04133 LH | Sun visor clip |
| 6 | 519A58 | Overhead console |
| 7 | W301893 | Assist handle screws (2 required) |
| 8 | 31406 | Assist handle |
| 9 | - | Rear window washer hose connector |
| 10 | - | Rear window washer hose connector |
| 11 | - | Headliner electrical connector |
| 12 | - | Headliner pushpin retainer (3 required) |
| 13 | 51916 | Headliner |
