Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

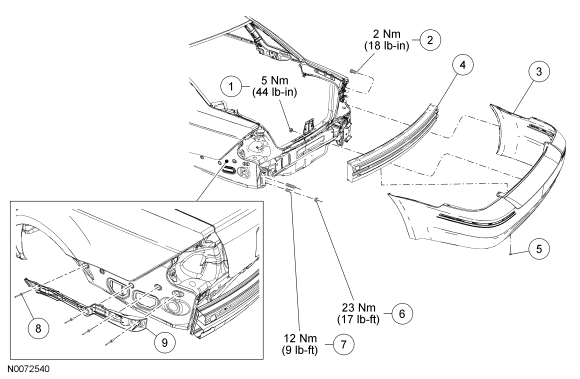

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N621906 |
Rear bumper cover nut (6 required) |
| 2 |
W706805 |
Rear bumper cover screw (6 required) |
| 3 |
17K835 |
Rear bumper cover |
| 4 |
17775 |
Rear bumper |
| 5 |
W710923 |
Rear bumper cover pin-type retainer (3 required) |
| 6 |
N621941 |
Rear bumper nut (4 required) |
| 7 |
N808889 |
Rear bumper double-ended stud (4 required) |
| 8 |
W705376 |
Rear bumper cover mounting bracket rivets (4 required) |
| 9 |
17D948 |
Rear bumper cover mounting bracket |

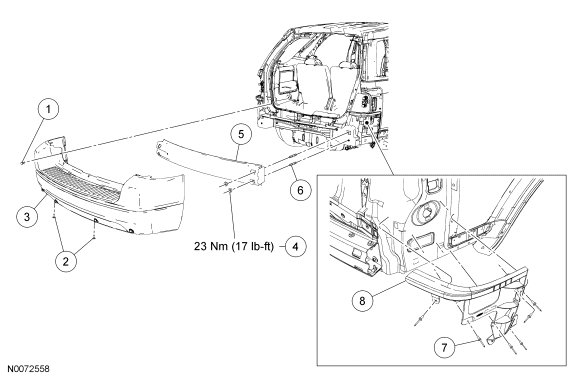

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W710250 |
Rear bumper cover scrivet (5 required) |
| 2 |
W710923 |
Rear bumper cover pin-type retainers |
| 3 |
17K835 |
Rear bumper cover |
| 4 |
N621941 |
Rear bumper nut (4 required) |
| 5 |
17775 |
Rear bumper |
| 6 |
N808889 |
Rear bumper double-ended stud (4 required) |
| 7 |
W705376 |
Rear bumper cover mounting bracket rivets (6 required) |
| 8 |
17D980 |
Rear bumper cover mounting bracket |
- For additional information, refer to the procedures in this article.
