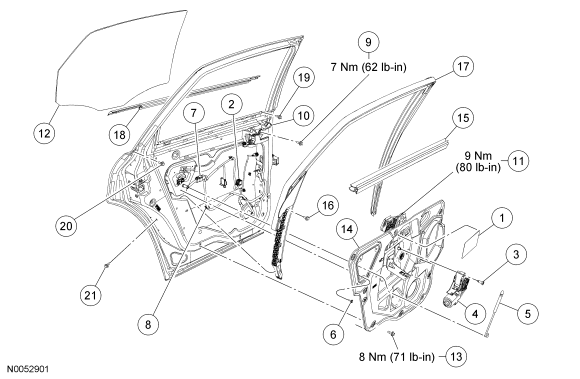

Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Taurus and Sable shown, Taurus X similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 997330 | Access hole plug |
| 2 | 14489 | Electrical connector |
| 3 | 166193 | Window motor screw (3 required) |
| 4 | 7423394 LH/ 7423395 RH | Window regulator motor |
| 5 | 5426460 LH/ 5426461 RH | Door lock rod |
| 6 | W505821 | Door latch screw (3 required) |
| 7 | 14A624 | Electrical connector |
| 8 | 14633 | Wiring harness |
| 9 | W505425 | Interior door handle bolt |
| 10 | 264A01 LH/ 264A00 RH | Interior door latch release handle |
| 11 | 981552 | Window regulator glass clamp bolt |
| 12 | 5425713 LH/ 5425712 RH | Rear door window glass |
| 13 | W506410 | Door module bolt (8 required) |
| 14 | 5424995 LH/ 5424994 RH | Rear door module |
| 15 | 5425860 | Interior weatherstrip |
| 16 | W706495 | Scrivet |
| 17 | 5425767 LH/ 5425766 RH | Rear door glass top run |
| 18 | 5425597 LH/ 5425596 RH | Rear door glass weatherstrip |
| 19 | W709451 | Rear door glass weatherstrip C-pillar screw |
| 20 | W709451 | Rear door glass weatherstrip D-pillar screw (if equipped) |
| 21 | N807605 | Screw |
- For additional information, refer to the procedures in this article.
