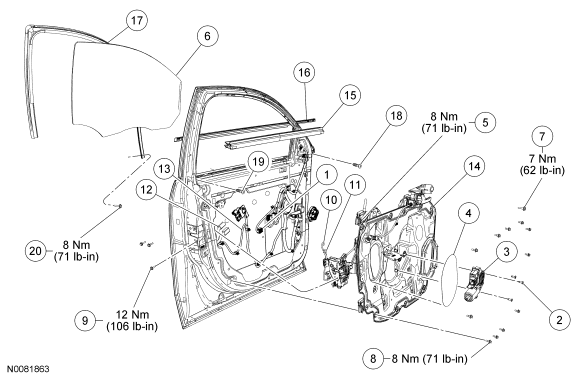

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14489 | Electrical connector |
| 2 | 166193 | Window motor screw (3 required) |
| 3 | 14A389 LH/ 14553 RH | Window motor |
| 4 | 996815 | Access hole plug |
| 5 | 166923 | Window glass clamp bolt (2 required) |
| 6 | 5421411 LH/ 5421410 RH | Front door window glass |
| 7 | W505425 | Interior door handle bolt |
| 8 | W506410 | Door module bolt (11 required) |
| 9 | N811471 | Door latch screw (3 required) |
| 10 | 22153 LH/ 22152 RH | Exterior door latch linkage |
| 11 | 22135 LH/ 22134 RH | Exterior door lock linkage |
| 12 | 14A464 | Electrical connector (4 required) |
| 13 | 14631 LH/ 14630 RH | Wiring harness |
| 14 | 013300 LH/ 203A28 RH | Door module |
| 15 | 5421434 | Interior door window glass molding |
| 16 | 5421453 LH/ 5421452 RH | Exterior door window glass molding |
| 17 | 5421597 LH/ 5421597 RH | Door window glass top run |
| 18 | W709451 | Weatherstrip A-pillar screw |
| 19 | W709451 | Weatherstrip B-pillar screw |
| 20 | W505420 | Door glass track bolt |
- For additional information, refer to the procedures in this article.
