Luggage Compartment Lid: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

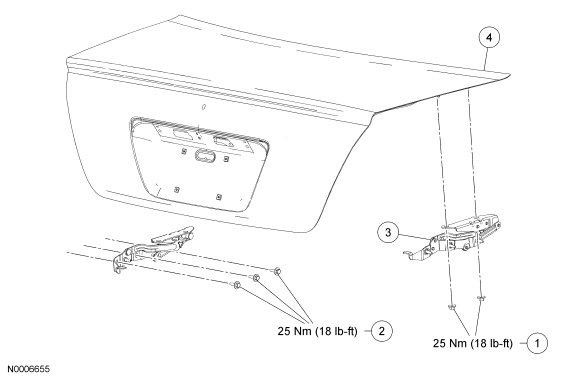

Fig 1: Exploded View Of Luggage Compartment Lid With Torque Specifications
GF0016255Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621940-S Hinge-to-luggage compartment lid nuts (4 required)
2 W505433-S Hinge-to-rear quarter panel bolts (6 required)
3 5442701 LH/ 5442700 RH Luggage compartment lid hinge
4 5440110 Luggage compartment lid
