Wheel and Tire: Removal

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

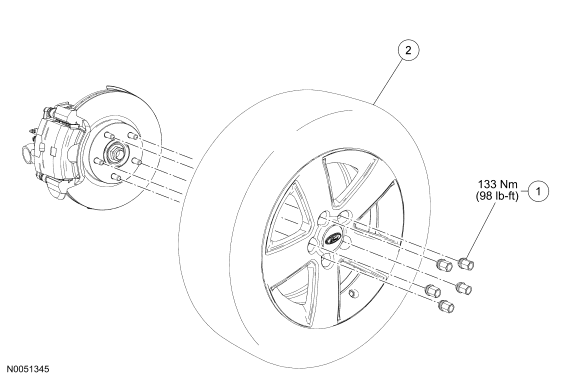

Fig 1: Exploded View Of Wheel & Tire With Torque Specifications
GF0017309Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1012 Wheel nut (5 required)
2 - Wheel and tire assembly
    NOTE: Do not use heat to loosen a seized wheel nut. Heat may damage the wheel and wheel bearings.
    NOTE: To avoid damaging or scratching the center cap, place facing up when removed.
  1. If equipped, remove the center cap or wheel cover.
  2. With the weight of the vehicle on the wheels, loosen the wheel nuts.
  3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
  4. Remove the wheel nuts and the wheel and tire.
  5. NOTE: Corrosion buildup can result in wheels sticking to the front brake disc flange/rear hub flange after extensive service.
  6. Use the following procedure to prevent the sticking condition from recurring once the wheels are removed.
    • Clean the brake disc flange/hub flange and wheel bore of corrosion with a wire brush, steel wool or any other suitable material.
    • Coat the wheel bore with a thin layer of grease. Do not apply grease to wheel hub bolt nut seats or the wheel stud.
