Removal And Installation

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 8 axle shaft bolts.
- Place a drain pan under the rear hub.

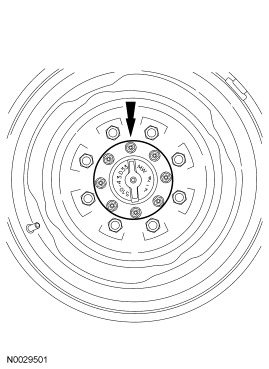

Fig 1: Identifying Axle Shaft Bolts

Courtesy of FORD MOTOR CO.

Remove the axle shaft.

Fig 2: Removing Axle Shaft

Courtesy of FORD MOTOR CO.

Inspect the following components:
- The rear axle shaft gasket for damage, install new gasket as necessary.
- The axle shaft for cracks around the bolt holes.

Fig 3: Identifying Axle Shaft Gasket

Courtesy of FORD MOTOR CO.

NOTE: If the original bolts are being reused, apply a suitable thread adhesive to the bolts.

NOTE: Torque specifications are the same for single rear wheel or dual rear wheel vehicles.

To install, reverse the removal procedure.
- Tighten to 133 Nm (98 lb-ft).

Fig 4: Locating Axle Shaft Bolts

Courtesy of FORD MOTOR CO.
