Valve Cover - RH, 5.4L: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Instant Gel Adhesive
TA-19		 WSK-M2G402-A4
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
Silicone Gasket Remover
ZC-30		 -

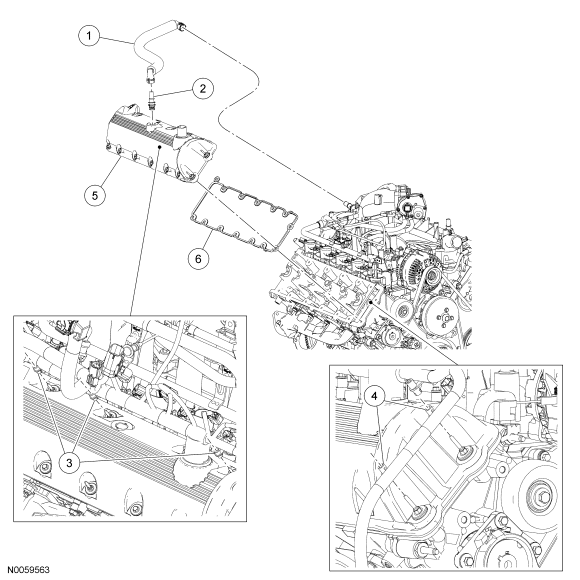

Fig 1: Exploded View Of Right Valve Cover 5.4L With Torque Specifications
GF0011629Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6K817 PCV tube
2 6A666 PCV valve
3 - Engine wiring harness retainers (3 required) (part of 12B637)
4 - Engine wiring harness retainers (2 required) (part of 12B637)
5 6582 RH valve cover
6 6584 RH valve cover gasket
