Thermostat - 4.6L, 5.4L and 6.8L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

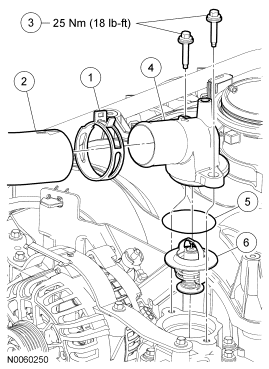

| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Upper radiator hose clamp |
| 2 | 8B274 | Upper radiator hose |
| 3 | W704693 | Thermostat housing bolts (2 required) - 4.6L (2V) |
| 3 | N806178 | Thermostat housing bolts (2 required) - 5.4L (2V), 6.8L (2V) |
| 4 | 8594 | Thermostat housing |
| 5 | N806807 | Thermostat O-ring seal |
| 6 | 8575 | Thermostat |
