Exhaust Gas Recirculation (EGR) Cooler - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

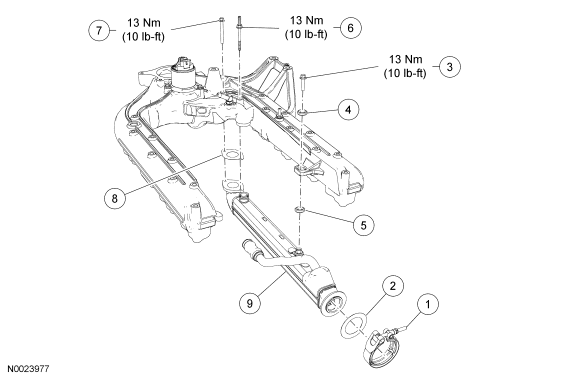

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR Cooler - 6.0L Diesel With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8287 | EGR cooler-to-inlet pipe clamp |
| 2 | 9E933 | EGR cooler-to-inlet pipe gasket |
| 3 | W300001 | EGR cooler bolt |
| 4 | - | Upper EGR cooler bolt grommet |
| 5 | - | Lower EGR cooler bolt grommet |
| 6 | W300042 | Intake manifold-to-EGR cooler stud bolt |
| 7 | W300032 | Intake manifold-to-EGR cooler bolt |
| 8 | 9E933 | Intake manifold-to-EGR cooler gasket |
| 9 | 9P456 | EGR cooler |
