Control System Diagnostic Sheet Reference: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2005 Ford RV Cutaway, 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Reference values are typical and may vary 10% depending upon current altitude, accessory operation, engine load, operating time, temperature, and vehicle speed.

PCM Pin Descriptions and Expected Values

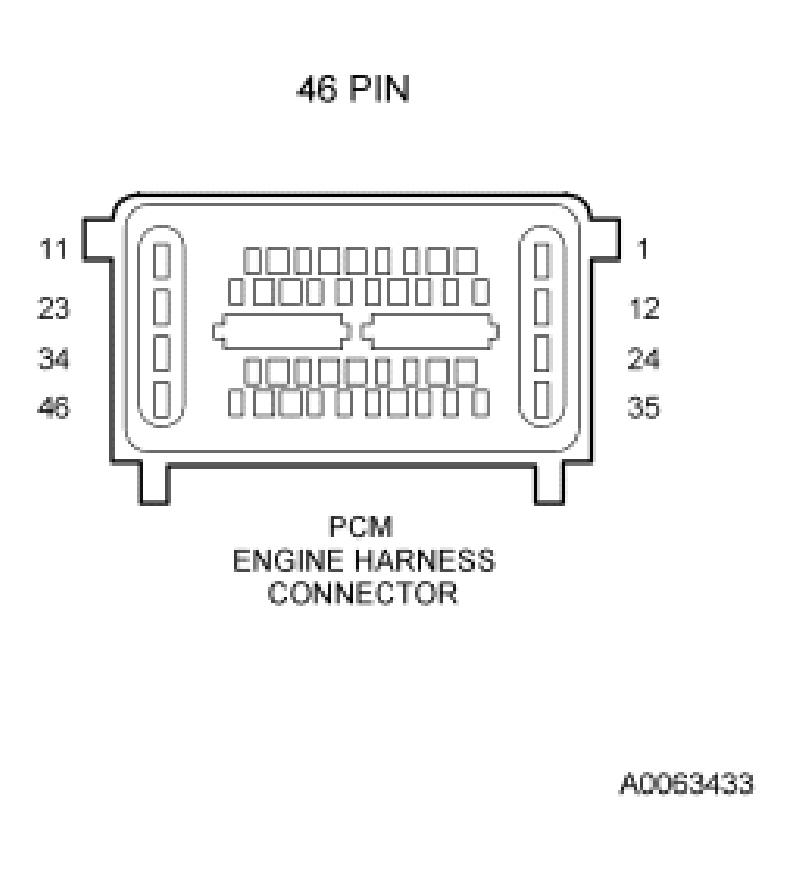

Fig 1: Identifying PCM Engine Harness Connector

Courtesy of FORD MOTOR CO.
