Removal And Installation

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator grille opening panel reinforcement. For additional information, refer to Radiator Grille Opening Panel Reinforcement - Upper and Radiator Grille Opening Panel Reinforcement - Lower .
Remove the front fender-to-front fender splash shield wheel lip screws.

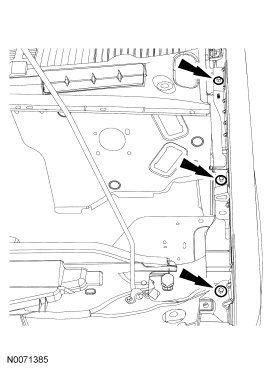

Fig 1: Locating Front Fender-To-Front Fender Splash Shield Wheel Lip Screws

Courtesy of FORD MOTOR CO.

With the front door open, remove the front fender rear upper screw.
- To install, tighten to 10 Nm (89 lb-in).
Through the front fender wheel well, remove the inner screw.
- To install, tighten to 10 Nm (89 lb-in).

Fig 2: Locating Front Fender Wheel Inner Screw

Courtesy of FORD MOTOR CO.

Remove the lower rear fender screw and shims.
- To install, tighten to 10 Nm (89 lb-in).
Remove the lower front fender-to-fender mounting bracket screw.
- To install, tighten to 10 Nm (89 lb-in).

Fig 3: Locating Lower Front Fender-To-Fender Mounting Bracket Screw

Courtesy of FORD MOTOR CO.

Remove the front fender upper screws and the front fender.
- To install, tighten 10 Nm (89 lb-in).

Fig 4: Locating Front Fender Upper Screws

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
