Selector Lever Knob: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

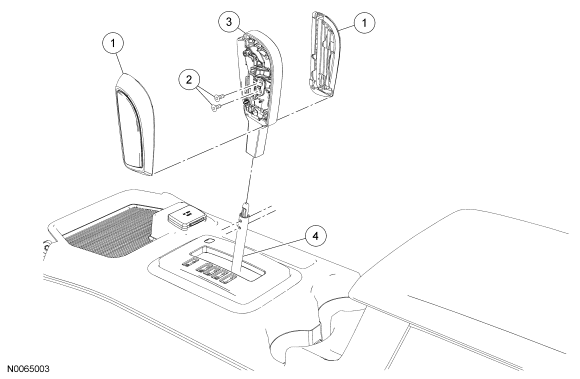

Fig 1: Selector Lever Knob Components
GF0042432Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever knob trim covers (part of 7L010)
2 - Selector lever knob screws (part of 7L010)
3 7L010 Selector lever knob
4 7K004 Selector lever assembly
