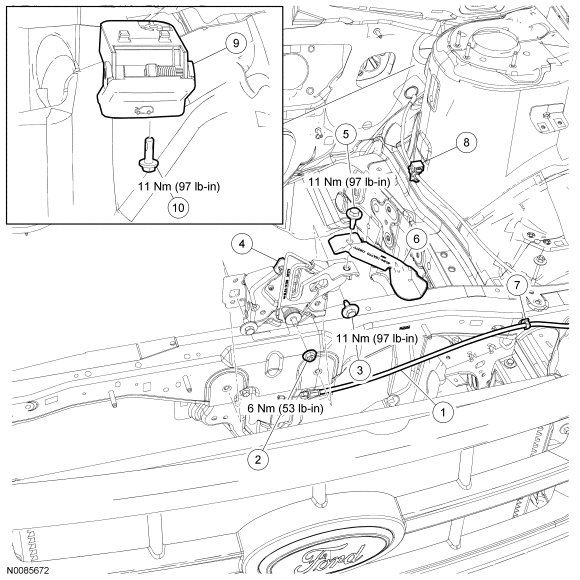

Hood Latch and Components
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 16916 | Hood latch release handle and cable assembly |
| 2 | W707137-S441 | Hood latch nut |
| 3 | W705162-S427 | Hood latch bolts (2 required) |
| 4 | 16700 | Hood latch |
| 5 | W505423-S307 | Hood latch release lever bolt |
| 6 | 16A770 | Hood latch release lever |
| 7 | 386132-S | Hood latch release cable clip |
| 8 | W710094-S300 | Hood latch release cable clip |
| 9 | - | Hood latch release handle (part of 16916) |
| 10 | W505424-S438 | Hood latch release handle bolt |
- For additional information, refer to the procedures in this article.
