Parking Aid Sensor
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

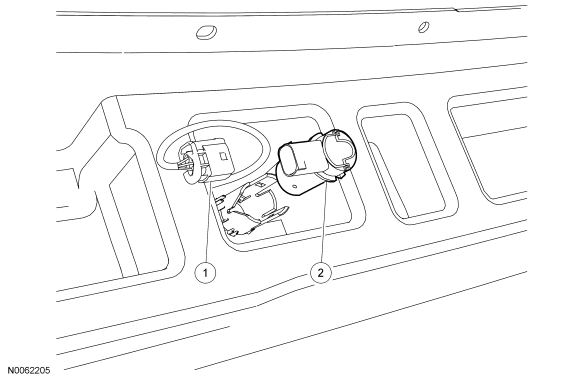

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking aid sensor electrical connectors (part of 14N139) |
| 2 | 14489 | Parking aid sensors |
- Remove the rear bumper cover. For additional information, refer to BUMPERS .
- Disconnect the parking aid sensor(s) electrical connector(s).
- Press the retaining tabs and remove the parking aid sensor(s).
- To install, reverse the removal procedure.
