Fuel Tank and Filler Pipe - Exploded View

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

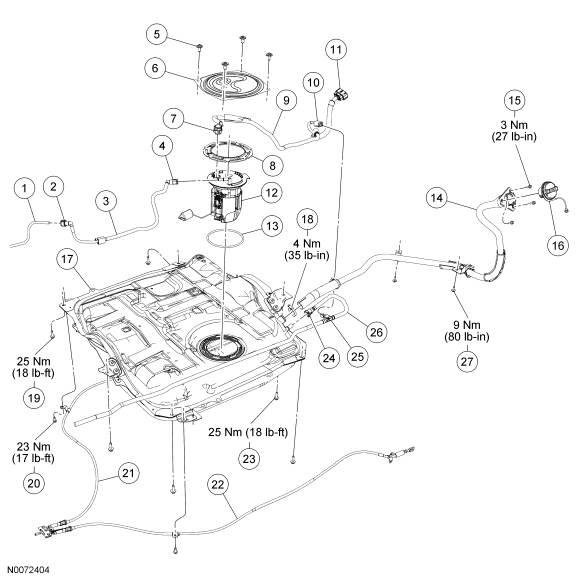

Fig 1: Exploded View Of Fuel Tank & Filler Pipe With Torque Specifications - Front Wheel Drive (FWD) Vehicle

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9S284	Fuel tube
2	-	Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324A)
3	9324A	Fuel tank jumper tube
4	-	Fuel tank jumper tube-to-fuel pump (FP) module quick connect coupling (part of 9324A)
5	W705909	FP module access cover bolt (4 required)
6	9C335	FP module access cover
7	-	FP module electrical connector (part of 14407A)
8	9C385	FP module lock ring
9	14407A	Fuel tank wiring harness
10	-	Fuel tank pressure (FTP) sensor electrical connector (part of 14407A)
11	-	Fuel tank wiring harness electrical connector (part of 14407A)
12	9H307	FP module
13	9276A	FP module O-ring seal
14	9034A	Fuel tank filler pipe
15	W505253	Fuel tank filler pipe flange screw (3 required)
16	9030A	Fuel tank filler cap
17	9K007	Fuel tank
18	W525937	Fuel tank filler pipe hose clamp (2 required)
19	W712826/ W713928	Fuel tank bolt (4 required) (early/late)
20	W708004	Parking brake cable bracket bolt (2 required)
21	2A604	Rear, RH parking brake cable
22	2A823	Rear, LH parking brake cable
23	W712826/ W713928	Fuel tank bracket bolt (2 required) (early/late)
24	-	Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9S284)
25	-	FTP sensor (part of 9S284)
26	9S284	Fuel vapor tube assembly
27	W710330	Fuel tank filler pipe bracket bolt (2 required)

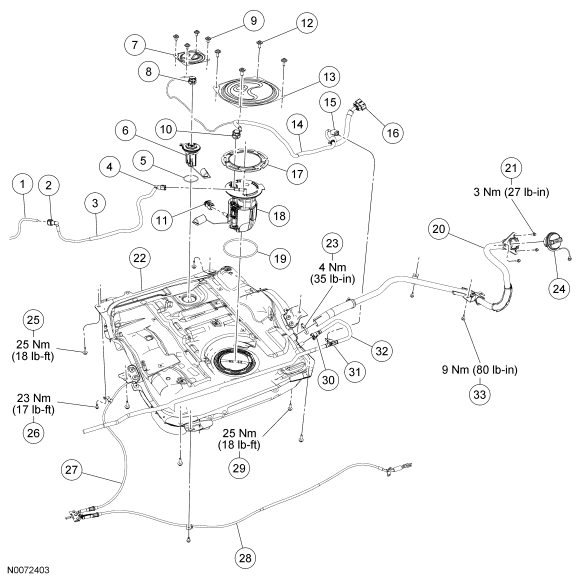

Fig 2: Exploded View Of Fuel Tank & Filler Pipe With Torque Specifications - All Wheel Drive (AWD) Vehicle

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9S284	Fuel tube
2	-	Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324A)
3	9324A	Fuel tank jumper tube
4	-	Fuel tank jumper tube-to-fuel pump (FP) module quick connect coupling (part of 9324A)
5	-	Fuel level sensor O-ring seal (part of 9275B)
6	9275B	Fuel level sensor
7	9C335	Fuel level sensor access cover
8	-	Fuel level sensor electrical connector (part of 14407A)
9	W705909	Fuel level sensor access cover bolt (4 required)
10	-	FP module electrical connector (part of 14407A)
11	-	Internal fuel tube-to-FP module quick connect coupling (part of 9K007)
12	W705909	FP module access cover bolt (4 required)
13	9C355	FP module access cover
14	14407A	Fuel tank wiring harness
15	-	Fuel tank pressure (FTP) sensor electrical connector (part of 14407A)
16	-	Fuel tank wiring harness electrical connector (part of 14407A)
17	9C385	FP module lock ring
18	9H307	FP module
19	9276A	FP module O-ring seal
20	9034A	Fuel tank filler pipe
21	W505253	Fuel tank filler pipe flange screw (3 required)
22	9K007	Fuel tank
23	W525937	Fuel tank filler pipe hose clamp (2 required)
24	9030A	Fuel tank filler cap
25	W712826/ W713928	Fuel tank bolt (4 required) (early/late)
26	W708004	Parking brake cable bracket bolt (2 required)
27	2A604	Rear, RH parking brake cable
28	2A823	Rear, LH parking brake cable
29	W712826/ W713928	Fuel tank bracket bolt (2 required) (early/late)
30	-	Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9S284)
31	-	FTP sensor (part of 9S284)
32	9S284	Fuel vapor tube assembly
33	W710330	Fuel tank filler pipe bracket bolt (2 required)

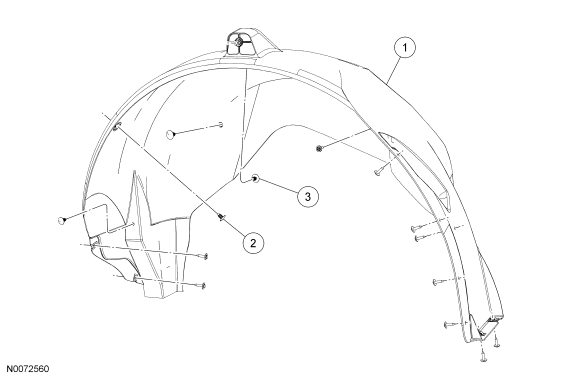

Fig 3: Exploded View Of Fuel Tank & Filler Pipe With Torque Specifications - All Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH rear splash shield
2	W712196	Splash shield pin-type retainer (4 required)
3	W706805	Splash shield screw (10 required)

For additional information, refer to the appropriate procedures.
