Fuel Lines: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

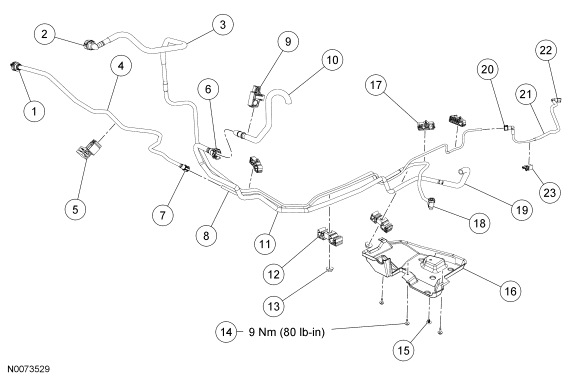

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel supply tube-to-fuel rail quick connect coupling (part of 9J280) |
| 2 | - | Fuel vapor tube-to-evaporative emission (EVAP) canister purge valve quick connect coupling (part of 9S284) |
| 3 | 9S284 | Fuel vapor tube |
| 4 | 9J280 | Fuel supply tube |
| 5 | - | Fuel supply tube retainer clip (part of 9J280) |
| 6 | - | Fresh air tube-to-fuel vapor vent tube quick connect coupling (part of 9S284) |
| 7 | - | Fuel supply tube-to-fuel tube quick connect coupling (part of 9J280) |
| 8 | 9S284 | Fuel tube |
| 9 | - | Fuel vapor vent tube retainer clip (part of 9S327) |
| 10 | 9S327 | Fuel vapor vent tube |
| 11 | 9S284 | Fresh air tube |
| 12 | 9F931 | Bundle retainer clip (2 required) |
| 13 | W707137 | Bundle retainer clip nut (2 required) |
| 14 | W710330 | EVAP shield bolt (3 required) |
| 15 | W705681 | EVAP shield pin-type retainer |
| 16 | 9H296 | EVAP shield |
| 17 | 9F931 | Bundle retainer clip (3 required) |
| 18 | - | Fuel vapor tube-to-EVAP canister quick connect coupling (part of 9S284) |
| 19 | 9E857 | Fuel vapor tube |
| 20 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324) |
| 21 | 9324 | Fuel tank jumper tube |
| 22 | - | Fuel tank jumper tube-to-fuel pump (FP) module quick connect coupling (part of 9324) |
| 23 | 9F931 | Fuel tank jumper tube retainer clip |
