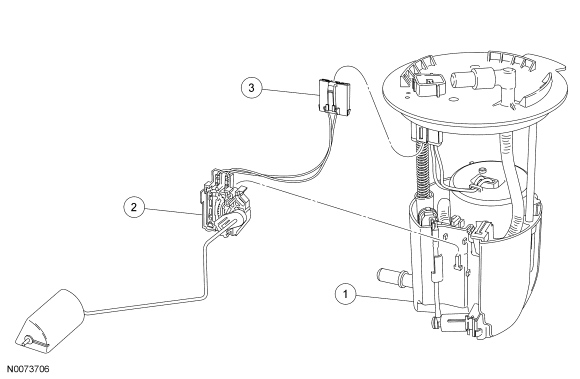

Fig 1: Exploded View Of Fuel Level Sender
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
9H307
Fuel pump (FP) module
2
9A299
Fuel level sender
3
-
Fuel level sender electrical connector (part of 9A299)
