Transmission Fluid Cooler: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Disconnect Tool, Transmission Cooler Line | 307-569 |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

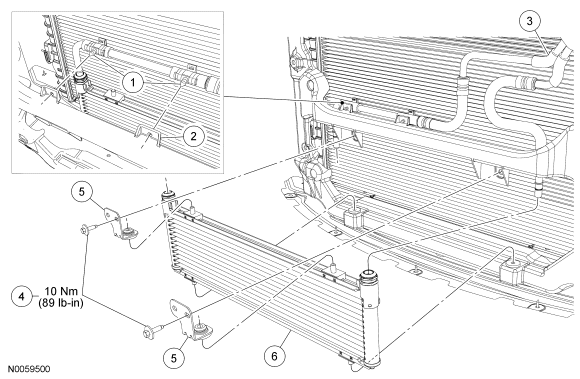

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission fluid cooler tube fasteners |
| 2 | - | Radiator support |
| 3 | - | Transmission fluid cooler tube assembly |
| 4 | - | Transmission fluid cooler mounting bracket bolts |
| 5 | - | Transmission fluid cooler mounting brackets |
| 6 | - | Transmission fluid cooler |
