Transmission Fluid Cooler Tubes: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Disconnect Tool, Transmission Cooler Line | 307-569 |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

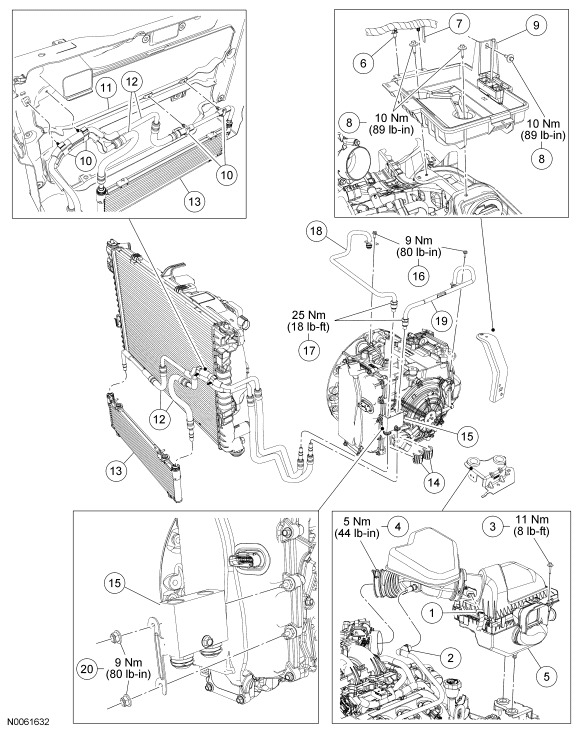

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector - mass air flow (MAF) sensor |
| 2 | - | Tube assembly - crankcase vent |
| 3 | - | Bolt - air cleaner bracket |
| 4 | - | Clamp - air cleaner outlet pipe |
| 5 | - | Air cleaner assembly |
| 6 | - | Fastener - wiring harness |
| 7 | - | Fastener - wiring harness |
| 8 | - | Bolts - battery tray |
| 9 | - | Battery tray |
| 10 | - | Transmission fluid cooler tube fasteners |
| 11 | - | Radiator support |
| 12 | - | Transmission fluid cooler tube assembly |
| 13 | - | Transmission fluid cooler |
| 14 | - | Transmission fluid cooler tube secondary latches |
| 15 | - | Transmission fluid cooler thermal bypass valve |
| 16 | - | Transmission fluid cooler tube bolts |
| 17 | - | Transmission fluid cooler tube fittings |
| 18 | - | Transmission fluid cooler outlet tube |
| 19 | - | Transmission fluid cooler return tube |
| 20 | - | Transmission fluid cooler thermal bypass valve nuts |
