Brake Booster: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

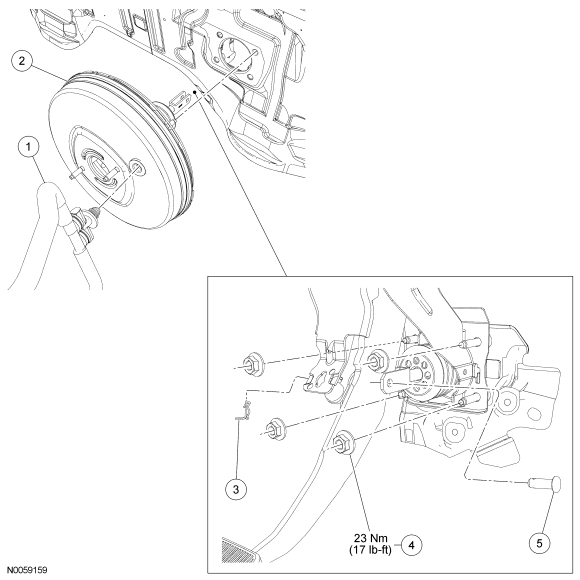

| Item |
Part Number |
Description |
| 1 |
9C490 |
Manifold vacuum hose assembly |
| 2 |
- |
Brake booster |
| 3 |
7B096 |
Brake booster push rod spring clip |
| 4 |
W707144 |
Brake booster nut (4 required) |
| 5 |
2N513 |
Brake booster push rod pin |
