Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

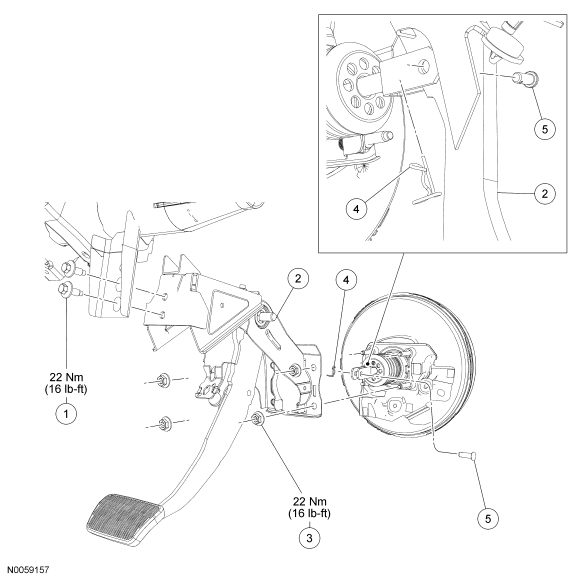

| Item | Part Number | Description |
|---|---|---|
| 1 | W711648 | Brake pedal bracket bolt (2 required) |
| 2 | 2455 | Brake pedal and bracket |
| 3 | W707144 | Brake pedal bracket nut (4 required) |
| 4 | 7B096 | Brake booster push rod pin clip |
| 5 | 2N513 | Brake booster push rod pin |
CAUTION:
Do not remove or loosen the fasteners that hold the 2 brake pedal bracket halves together. Failure to follow these instructions may result in damage to the brake pedal bracket.
