Brake Master Cylinder: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

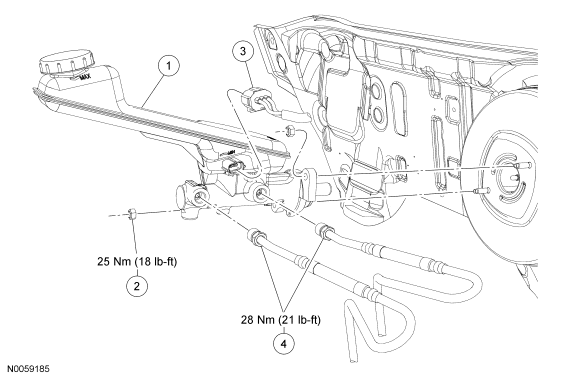

| Item | Part Number | Description |
|---|---|---|
| 1 | 2B195 | Brake master cylinder and reservoir assembly |
| 2 | - | Brake master cylinder nut (2 required) |
| 3 | - | Brake fluid level switch electrical connector (part of 14A290) |
| 4 | 2A335 RH/ 2286 LH | Master cylinder brake tube fittings |
